The Shockwave v3.0 is the latest refinement of the original Shockwave.
It is typically used in an independent front suspension application. It can also be used in some independent rear suspension applications.
The Shockwave v3.0 uses a double convoluted airspring bellows to achieve the load capacity required for these installations.

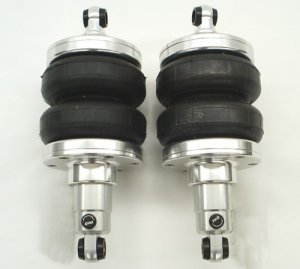

Aluminum single adjustable shocks with Firestone air spring.
These are part# SKW1042 have the single adjustable QA1 shocks.
They have the eyelet to stud mounting with a 11.79" extended height and 9.19" compressed height.
These fit tons of application, they can be used on the front of most vehicles.
FEATURES:
* BOLT-ON INSTALLATION (No Welding Required)
* UNEQUALLED RIDE QUALITY.
* PROVEN PATENTED SEALING TECHNOLOGY.
* ANODIZED BILLET ALUMINUM CONSTRUCTION .
* 16 POSITION ADJUSTABLE VALVING.
* ELIMINATES TIRE CLEARANCE PROBLEMS.
* SUPERIOR HANDLING.
Use on IFS installations on vehicles weighing 1500lbs per axle
2140 lb load capacity each @ 100psi
SKW1042
Comp height 9.75"
Ride height 11.50"
Extended height 13.30"
Stroke 3.5"
